Name: Huiyu Dripping Tile.
Specification: 460mm (length).
Application location: Horizontal eaves of the first row of tiles
Item | Value/Description |

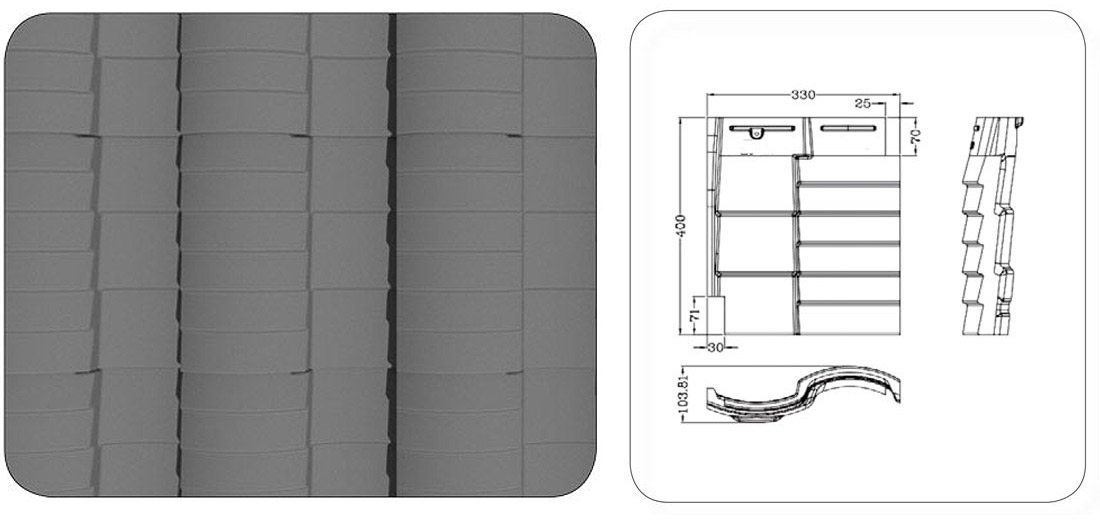

Overall Dimensions | 400mm × 330mm × 104mm |
Molding Method | Compression molding |
Cut Type | Straight cut |
Effective Tile Area | Effective length 330mm Effective width 305mm |
Side Overlap Width | 25mm |
Water-flow Batten Usage | Approx. 1.8m/m² (spacing 600mm) |
Tile-hanging Batten Usage | Approx. 3.3m/m² (spacing 300mm) |
Tiles Per Unit Area | Approx. 10 pcs/m² |
Weight | Approx. 4.5 ± 0.18kg per piece |
Impermeability | No water droplets observed on the back after 24h immersion test |
Water Absorption | <10% |
Heat Resistance | Surface coating remains intact after heat resistance test |
Load-bearing Capacity | ≥ 1800N |
Overlap Method | Vertical overlap and horizontal interlocking |
Frost Resistance | Conforms to JC/T746-2007 standard; after 25 freeze-thaw cycles (saturated in water, frozen at -20℃ for 3h, thawed in 20℃ water for 1h), appearance quality, impermeability and load-bearing capacity meet requirements |
