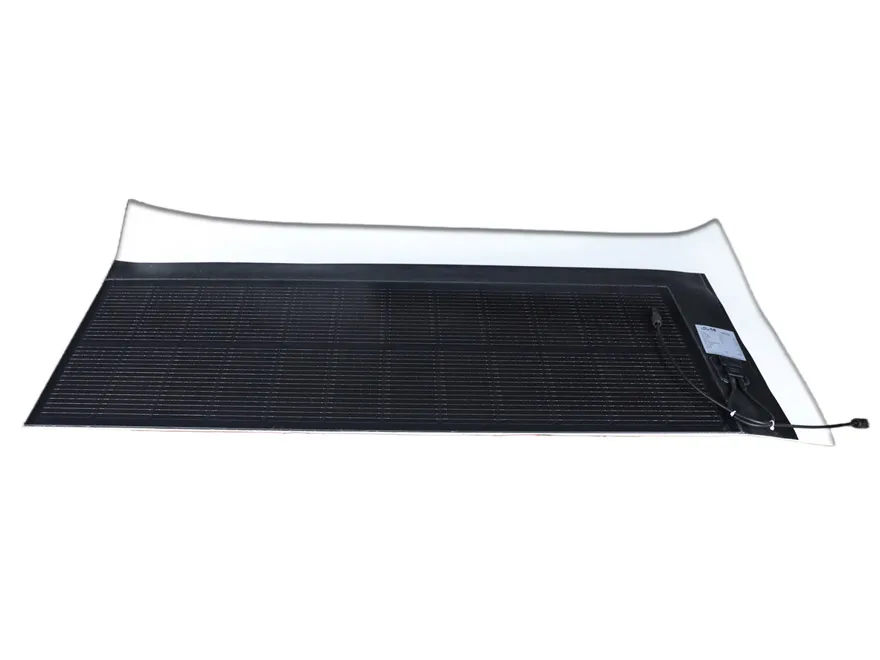

Asphalt shingle look with solar power inside.
Fits perfectly with asphalt roofs for quiet, efficient energy.
Category | Item | Specification |
Electrical performance | Model | YND-LH100 |
Maximum power (Pm/Wp) | 100±3% | |
Maximum power voltage (Vmp/V) | 14.16 | |
Maximum power current (Imp/A) | 7.06 | |
Short circuit current (Isc/A) | 7.77 | |
Open circuit voltage (Voc/V) | 16.60 | |
Maximum system voltage (V) | 1000 | |
Mechanical performance | Wind Load Resistance | 2.4kN/m² |
Cell Quantity & Type | 24 PCS Mono cells 182.2*91.88mm | |
Operating Temperature | -40~+85°C | |
Flame Retardant Rating | V0 | |
Temperature coefficient (STC) | Temperature coefficient of Voc | -0.25%/°C |
Temperature coefficient of Isc | +0.045%/°C | |
Temperature coefficient of Pmax | -0.29%/°C | |
Full shingle dimensions(mm) | Net Weight (kg) | 5.2 |
Length (mm) | 1330 | |
Width (mm) | 600 | |
Thickness (mm) | 5 | |
Glass dimensions(mm) | Length (mm) | 1160 |
Width (mm) | 400 | |
Thickness (mm) | 3.2 |
